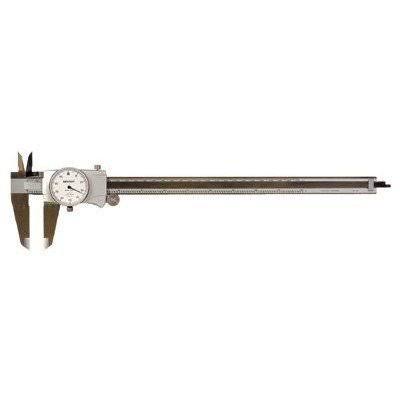

Mitutoyo 505-677 Dial Caliper, 0 - 12", White Face PEF60_Q7301

$149.95  $54.86




Product details:

Mitutoyo Dial caliper with white face has measuring range from 0" - 12" and is made of stainless steel for durability. Caliper has a resolution of 0.001" and is used to measure inside/outside diameter, step as well as depth.. Display color: White. - Measuring range: 0 - 12" (0 - 300 mm). Graduations: 0.001". Material: Stainless steel. - Measuring system: Inch. - Measuring type: Inside dimension, outside dimension, step, depth. - Resolution: 0.001" (0.02 mm). Bar graduations: 0.1". Jaw depth: 0.87" (inside), 2.52" (outside). Feature hardened points for precise marking of the workpiece. - New designed dial movement for ultra smooth sliding and high shock protection. - Titanium nitride (Ti - N) coating is applied to the sliding surface to increase wear resistance. - Can measure OD, ID, depth, and step. - Lock screw for dial bezel and for holding the sliding jaw position. - Range/revolution: 0.1". Weight: 1.8 lbs.. Mitutoyo 505-677 Dial Caliper in stainless steel has dial display with jaw length 4.4" (upper) and 2.52" (lower).
