Product details:

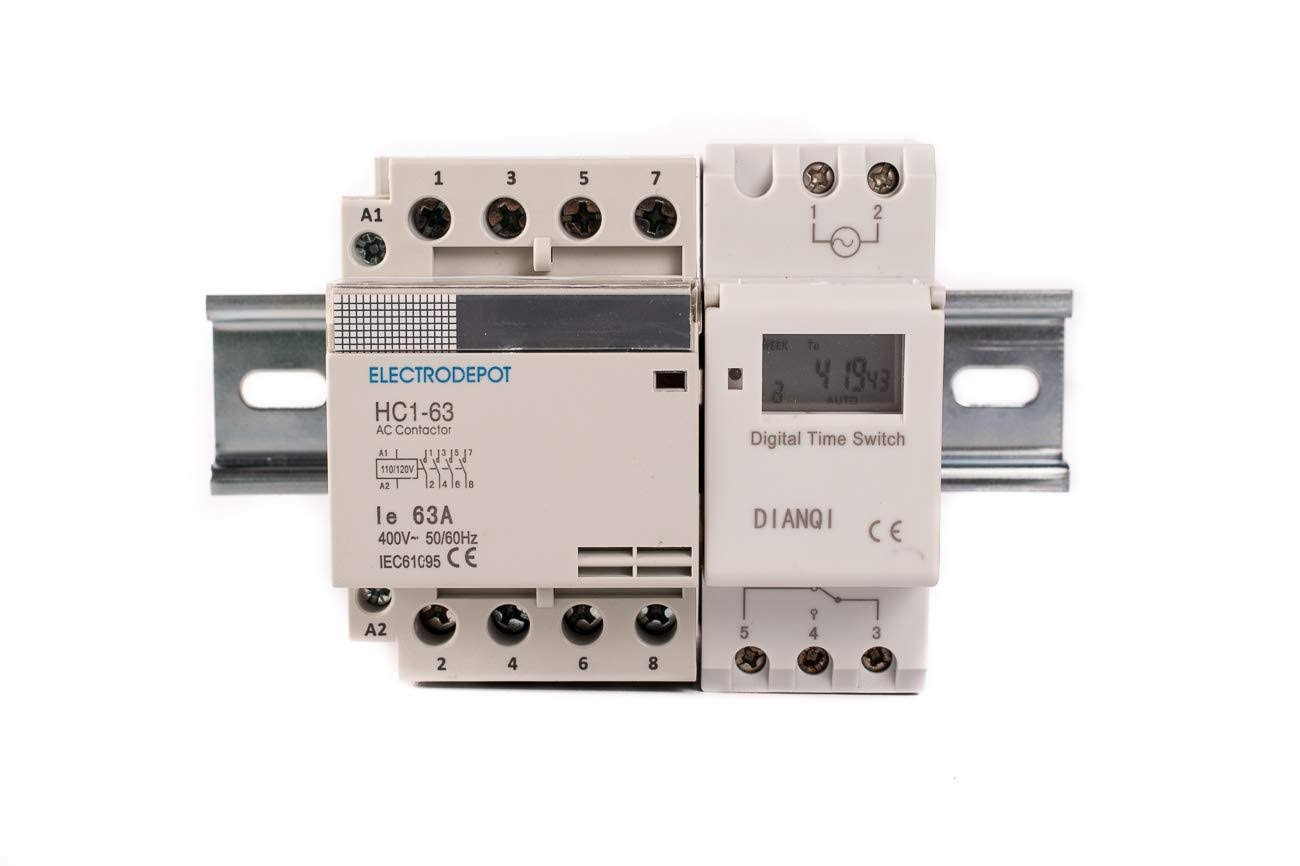

ABOUT CONTACTOR40 Amp 4 Pole Normally Open IEC 400V Contactor for home or industrial uses. - With applications in lighting, motor and switching. - Technical Specifications: Contactor IEC 400V Contactor Type NO Inductive Load: 40A Resistive Load: 63A DC Load: 30A, @ 24VDC Power status indicator Number of Poles 4 Coil Volts: 110/120VAC, 50/60 Hz Coil Load: Inrush 52VA, Sealed 10VA IEC AC Rate: AC-1, 10 k - W. AC-3, 8 k - W Electric e strength: 4 k - V Operating Temperature: -30+70 C (-22+158 F) 1 HP @ 1 Phase - 120V 2 HP @ 1 Phase - 230V 5 HP @ 3 Phase - 208V 5 HP @ 3 Phase - 230V 10HP @ 3 Phase - 480V Weight: 0.88 lb (0.42 kg) Width: 2.2 inch (54 mm) Height: 3.3 inch (85 mm) Depth: 2.5 inch (67 mm) CE approved 61095, UL pending Base or DIN 35mm mount - Wiring:Solid Conductor: 25 mm2 Max torque 0.6 Nm - Stranding Conductor: 16 mm2, Max torque 0.6 Nm - ABOUT TIMER7 Days 24 Hours Electronic Programmable Timer for better control in home or industrial installations. 7 days, 24 hours accuracy to the minute Programmable timer mode: MAN-AUTO-OFF 3 year backup memory 16 separate ON/OFF programmable settings Integrated battery backup - ABOUT DIN RAILDIN Rails are the standard mounting support for any electromechanical component, device or equipmentdesigned using the DIN specifications adopted by European (EN) and international (IEC) standards. - The rail features slots throughout its length making it easy to attach to a panel, wall or equipment. - For support of mini circuit breakers, contactors, auxiliary relays, terminal blocks, etc. Width: 35mm (1.375) Length: 150mm (6) Thickness: 5mm (0.2)
